Chemiluminescent images with standard cameras

I work with proteins, so I’ve done Western blots throughout my career. Originally that meant using film and developers, and later with imagers. Imagers are way better than having to deal with film, so as soon as I knew I was going to start up a lab, I started looking at various imagers and quoting them out. Even the most basic imagers with chemiluminescent capabilities quoted in the $24-27k range. But then it dawned on me….. are these imagers nothing but kind of old cameras with a light-proof chassis and dedicated acquisition and analysis software? During my stint in Seattle, I dabbled with taking some long-exposure photography of stars in my parents back yard. Perhaps I could do something similar for taking images of blots?

I had bought an Olympus E-PM2 16.1MP mirrorless camera for $320 back in 2014. While I used it a decent amount at first, I eventually stopped using it as often as I started using my smartphone for quicker snaps, while using Anna’s Nikon DSLR with an old telephoto lens for more long-distance pictures. So, with the E-PM2 now not doing much at home, I figured I’d bring it in and try it with this. I cut out a hole in the top of a cardboard box I could stick the camera into. I dug up the intervalometer I had used for those long-exposure photos of the sky. Nidhi had been doing some western blots recently, and had kept her initial attempts in the fridge, which was good since I could just grab one of those membranes instead of running and transferring a gel just for this. I kept it in some anti beta-actin HRP antibody I recently blot, washed it, and exposed.

OLYMPUS DIGITAL CAMERA

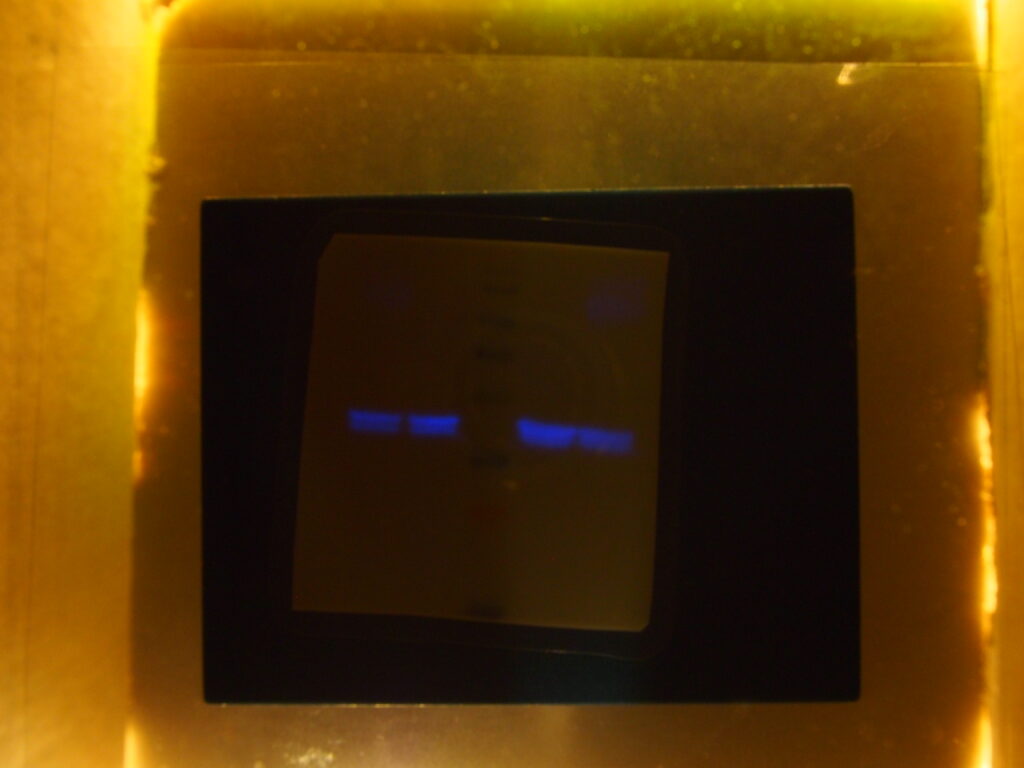

Above is something like a 5 minute exposure. So my cardboard box wasn’t perfectly around the sides, so there’s a decent amount of light bleeding in. I had the blot lifted up within the blot on a metal pedestal (some heat-blocks that weren’t being used), so the blot itself is actually pretty free from being affected by the bleed-over light. Notably, the beta-actin bands are blue! Which makes sense, as if you’ve ever mixed bleach with luminol, you see a flash of blue light. Furthermore, if you google “hrp luminol nm”, you see that the reaction should emit 425nm light (which is in the Indiga / violet range). Notably; this would be a difference between my regular use Olympus camera, which is a color camera, with cameras you’d normally encounter on equipment like fluorescent cameras, which are normally black-and-white.

I had actually been playing around a bit with image analysis in python over the last week or so (to potentially boot up a automated image analysis pipeline). That work reminded by that color images are a mixture of red-green-blue. Thus, I figured I could isolate the actual signal I cared about (the chemiluminescent bands) from the rest of the image by keeping signal in the blue channel but not the others. So I wrote a short python script using the scikit-image, matplotlit, and numpy libraries and ran code to isolate only the blue image and convert it to greyscale, and to invert it so the bands would appear dark against a white background.

To be honest, the above picture isn’t the first ~ 5-minute exposure I mentioned and showed earlier. Knowing this seemed to be working, I started playing around with another aspect that I thought should be possible, which was combining the values from multiple exposures to make an ensemble composition. The reason for this being that a single large exposure might saturate the detector, making you lose quantitation at the darkest parts of the band. I figured why couldn’t one just take a bunch of shorter exposures and add them up in-silico? So I took five one-minute exposures. The above image is the inverted first image (with an exposure of one minute).

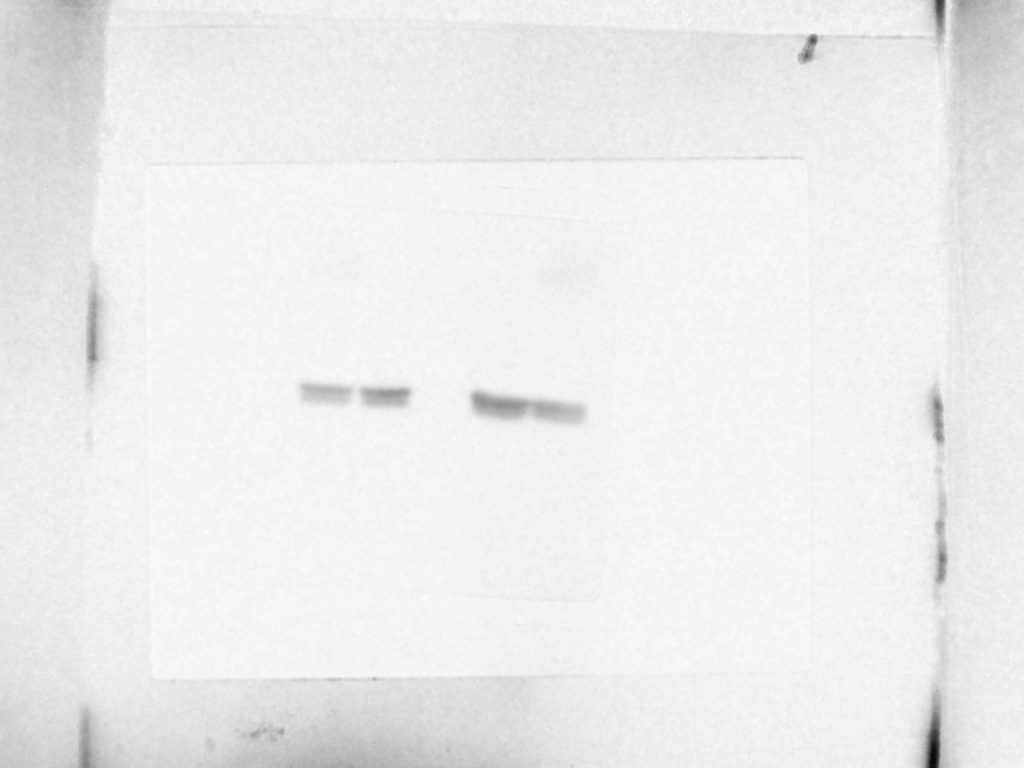

And the above image here is what it looks like if I make an ensemble plot from 5 separate 1-minute exposures. With it now effectively being a “longer exposure” (due to the combining of data in silico), the signal over the background has been improved, with no risk of over-saturating any of the detectors.

So while I’m sure there are many suboptimal parts of what I did (for example, the color camera may have less sensitivity for looking at chemiluminescent signals), it still seemed to have worked pretty well. And it was essentially free since I had already had all of the equipment sitting around unused (and would have cost < $400 if I had to buy them just for this). And also gave me a chance to look under the hood of this a bit, practice some python-based image analysis, and prove to myself that I was right.

Pymol Basic Tutorial

Alright CWRU students; today we will talk about installing PyMol and using it for some basic analysis of protein structure.

1) INSTALLATION

Firstly, download PyMol. CWRU has a subscription, so go to this link and read the license agreement. If you agree, press “I agree”. Then, enter your CWRU SSO info to be logged into the institutional software page. Hit any of the logos in the “PyMOL AxPyMOL v2.4” section (they all redirect to the same place).

As of 10/20/20, they do some weird web-store thing (never seen this before). You’ll have to add the version for whatever platform / OS you’re on, and hit add to cart, and then on the next pop up, hit “Check Out”. It’s confusing, but it’s all free, so this seems to just be a formality. You’ll get an email confirmation, but this email confirmation really doesn’t do much.

You will get to a screen that looks like this though:

First, while you’re still on the above screen, make sure you hit the “Important Notice” link. This will tell you the information you’ll need later for registering. The important notice screen will look like this (just without the blacked out parts).

Now that you know that info, go back to the previous screen (with the big “Download” button), add the version for the platform / OS you’re on, and hit download. You’ll then get to another screen where you’ll have to hit download again.

Now you’re on the registration screen. Type in the info from earlier, and type in your case email address. You’ll get an email to your school email address bringing you to the download link.

I whited out some of the token link, so you’ll have a link that looks much longer than above.

Follow that link and you’ll get to another page that looks like this:

Once you type in your case email address again, you should FINALLY get to the download page, which will look like this:

There’s the lot of links there, but the most important one is the very first link, under “Download PyMOL”. Hitting that should bring you to this page:

You’ll need to do two things here. First, before you forget, download the license file. This is the button on the bottom right. Following the instructions will allow you to download a “pymol-license.lic” file. I like to put it into the same Application folder, so it’s easy to find. As shown in the picture provided by the website, you’ll need this file when you first open up PyMol on your computer.

Next, download the program itself, based on your platform (again, I’m on a Mac). Once downloaded, follow the steps for installing Pymol (for macs, it’s opening up the disk image, and then dragging the Pymol application into your computer Application folder). Double click to open the program, and it will ask about activation. Click the “Browse for License File” button and select that license file you recently downloaded. Voila!, you have successfully navigated the gauntlet of website complexity to achieve your goal. A world of exploring protein structures awaits.

2) USAGE

Now that it’s downloaded and properly linked to the license, you should get a nice blank screen like this.

I could explain what everything is, but it’s easier to just to get started. If you’re on an internet connection, the easiest way to load protein structures is to use the “fetch” command. Essentially 99% of the protein structures you’ll ever want to see will be deposited at the RCSB Protein Data Bank. Go to that website, type in your favorite protein, and see what hits you have. For the purposes of today, I’ll just use a structure I’ve stared at many times over the last 5 years: that of the tumor suppressor protein PTEN. I have the code memorized, and it’s “1d5r”. So, type in “Fetch 1d5r” into either the bottom “PyMOL>_” prompt area, or in the top “PyMOL>” prompt area. Both spaces work / are largely redundant, although the top area actually records what your previous commands were, so I have a slight preference for this area. You should then now see the below protein pop up into your PyMol window.

From here, it’s easiest if you have a two button mouse connected. If you do, you can do a left-click hold and drag to flip the protein around. You can also do a right-click hold and drag to zoom in and out. And finally, you can also hold down either option or command (if you’re on a mac) and left click to actually move the entire molecule around on the screen. if you have a scroll wheel, you may notice that turning it makes part of the protein appear or disappear. This is called “clipping” and will be useful in certain cases where you need just the right picture of part of the protein, but we won’t be getting into this for today.

On the other hand, you may be using a laptop without a two-button mouse. While slightly less ideal, you can still do everything pretty easily as long as you go to the top menu-bar, click and over over “mouse” and click down on “1 Button Viewing Mode”. Now, if you go back to the Pymol window, you can still turn the object clicking and dragging on your trackpad, but you zoom by holding down control while clicking and dragging, and moving the entire molecule around (relative to your frame of view) by first holding down option before clicking and dragging.

The default is a “cartoon” view, which shows the backbone of the peptide, as well as secondary structure with alpha helices shown as helices, and beta strands shown as those flat arrows. I find cartoon views to be the most generally useful, so we’ll keep it like that for now. The small red plusses are water molecules the authors have in their model. I find these to be kind of annoying, so I like to hide them in the beginning, only brining them back in much later when we’re considering how various side-chains may be interacting with water in the medium. To do this, I just type in “hide all” which makes everything disappear, and then “show cartoon”. Now all of the extra molecules aside from the peptide backbone should be gone. In the case of PTEN, there’s a small tartrate molecule that was bound to the active site. It’s worth making this visible. The easiest way to select it is to click the “S” button in the bottom right menubar…

This will call up the sequence at the top of the protein viewer window, below the command-line area. The tartrate molecule is after the entire PTEN sequence, but before the waters. Scroll, there, and click on “TLA” to select it.

The sequence pops up, and default to the very beginning (starting with chain A)
After scrolling to the right, you can see the TLA substrate mimic in the sequence list.

This will make a new selection called “sele”. Now you can tell the program to make a visual representation of the selected “TLA” molecule. One option is to type in “show sticks, sele”. This will be pretty subtle. On the other hand, if you want to be able to see the atoms of the TLA molecule from pretty far, you can instead type “show spheres, sele”. The molecule will then look like this:

Nice. From here, feel free to explore. If you want to select particular residues, it’s helpful to use the “resi” denotation. For example, if we wanted to select residues 124, 129, 130, and 38, you can type in “select important_residues, resi 124+129+130+38′. There will now be a new selection called “important_residues”. To show where these are, you can choose to show these as spheres also (“show spheres, important residues”), and color them a different color to make them easier to see, such as by typing “color yellow, important_residues”. You’ll have something that looks like this.

3) OUTPUTS

So you’re doing doing all of your exploratory analyses, and feel like making an image to put into a presentation. First thing to consider is the background. It defaults to black, but white is usually better for most presentations / paper figures. You can change this either by selecting Display/Background/White from the top menu, or by simply typing in “set bg_rgb, white”.

While you can get a decent picture even with this, you can get much nicer images if you tell the program to render the image first. You can do this by clicking the “Draw/Ray” button at the top right corner of the screen, and fill out the values you want, or you can tell it to do its ray-tracing / rendering from the command line by typing something like ‘ray 900″. After a little bit of waiting, you’ll get a rendered image.

Now you can go to “File/Export image as/PNG…” and export your image file to one of your computer directories. You’ve made a simple, high quality figure. Hurrah! You may want to save your Pymol analysis file by going to “File/Save Session As…”. Thus, if you want to get back to this step without starting from scratch, all you need to do is open this session file again and you’re back to the same spot.

Hopefully that was a useful introduction to some basic operations in Pymol. There’s a ton more you can do with the program, but I’ll leave it here for now.

4) ADDENDUMS

So the above the the most basic things to get you started, but as I interact with trainees here (and see what we need to do for their work), I’ll amend this page with other more specific operations.

A) Show the protein surface.
Cartoon diagrams are great to understand how the protein is structured, but doesn’t give you a sense of what the surface of the protein looks like. That’s where showing the protein surface comes in handy. You can do this quite simply by typing in “show surface, all” (replacing “all” with whatever object name there is). This will create something like this:

The reason for the blue, red, and yellow is that the default coloring scheme in pymol is color carbon atoms green, nitrogen atoms blue, oxygen atoms red, and sulfer atoms yellow. If that’s too distracting, you can just color everything green by typing in “color green, all”.

But what if you want to see both the protein surface as well as the underlaying secondary structure? One approach is to make the surface representation semi-transparent. You can do this by typing something like “set transparency, 0.75”.

B) Selecting atoms near another selection of atoms
This can be a pretty useful feature. For example, you may be curious which residues of a protein is near a substrate mimic molecule. Or maybe the structure shows a protein-protein interaction, and you’re trying to figure out which residues in protein A are in close contact with protein B. Below is a third example, which is figuring out which atoms of a protein are pretty close to water molecules on the surface of the protein.

As described on this page, you can use the “around” command for this. Here’s a series of commands to show the atoms of the protein as spheres, color them all green, and then select only the atoms near water and color them blue:
“show spheres, 1d5r and not resn HOH”
“color green, 1d5r and not resn HOH”
“select near_water, (resn HOH) around 3.5”
“color blue, near_water”

Sanger seq analysis – finding correct clones

We do a lot of molecular cloning in the lab. Sarah has been working on a great protocols.io page dedicated to writing up the entire process, which I’ll link to once it’s completely set. But once you’ve successfully extracted DNA from individual transformants, a key tool in the molecular cloning pipeline is to find the clonal DNA prep that has the intended recombinant DNA in it. We use Sanger sequencing to identify those clones. That is what this instructional post will be about.

First, gather all of your data. I have a plasmid map folder on the lab google drive, where all of the physical .gb files for each unique construct is stored. Create a new folder (named after your .gb file), and *COPY* all of the relevant Sanger sequencing traces (these are .ab1) files into that folder. That will just help organize everything down the road. *PREFIX* the Sanger sequencing files with the clone id (usually “A”, “B”, or “C”, etc). This will make things easier to interpet down the road.

You presumably already have this plasmid map on Benchling, since that’s likely where you designed the plasmid, so open that up. if you don’t already have it on there, then import it. Once open, click on the to the “alignment” button on the right hand side.

If this is your first time trying to align things to this plasmid, then your only option will be to “Create new alignment”; press this button.

Next you’ll get to another screen which will allow you to add in your ab1 files. Click the choose files button, go into the new folder you had made in the “Plasmid” directory of the lab google drive, and import the selected abi files.

If you’ve successfully added the abi files, then the screen should look like this:

The default settings are fine for most things, so you can go ahead and hit the “create alignment” button. It will take a few seconds, but at the end you should get a new screen that looks like this.

The above screen is showing you your template at the top, as well as the Sanger seq peaks for each of your Sanger runs. If you’re trying to screen miniprep clones to see which prep might have the right construct, then go to the part of the map / alignment that was at the junction. For example, in this above construct, I had shuttled in the iRFP670 in place of mCherry in the parental construct, so anything that now has iRFP670 in there in place of mCherry is an intended construct. Looks like I went 3/3 this time.

This is a good chance to look for any discrepancies, which are signified by red tick marks in the bottom visualization. I’ve now moved the zoomed portion to that area, and as you can see, the top two clones seem to have an extra G in the sequence triggering these red lines. This is where a bit of experience / intuition is important. Since this is toward the end of the sequencing reaction and the peaks are getting really broad (compare to the crisp peaks in the prior image), the peak-calling program was having a hard time with this stretch of multiple Gs, thus calling it 4 Gs instead of 3. I’m not concerned about this at all, since it’s more of an artifact of the sequencing rather than a legit mutation in the construct. If we were to sequence this area again with a primer that was closer, I’m almost sure all of the constructs will show they only have 3 Gs.

Since all three constructs seem to have the right insertion any without any seemingly legit errors (yet), I typically choose one close and move forward with fully confirming it. All things being equal, I make my life simpler by choosing the clone that is earliest on the alphabet (so A in this case). That said, if all three looked fine but Clone C had by far the highest quality sequencing (say, the Clone A trace only went 400nt while the Clone C trace went 800+, I’d instead go with Clone C).

Next is sequencing the rest of the open reading frame. if you already chose a sequencing primer, then you’ve probably already attached a bunch of primers onto this map. But let’s pretend you haven’t already done this. To do this, go to the “primer” button and hit “attach new primers”, as below.

You may already have a primer folder selected. In that case, you’re all set to go. Otherwise, you’ll have to select the most recent primer folder. Click the “Add locations” area, open the triangle for the folder that says “O_Primers” and select the most recent folder (since this is currently august, this would be “20200811”. If selected, it should show up in the window, like the below picture.

Hit “Find binding sites” and it will come up with a long list of primers *that we already have* that are located in your construct.

This part gets kind confusing. To actually use these primers, you’ll first have to hit the top left box, located on the header row of the big table of primers. You should then see a check mark next to every primer.

Once you do that, hit the “Attach selected primers” button that it’s in green at the top right of the screen.

Once you do that, all of the primers that were previously listed but colored white before should now be colored green. NOW you’re free to switch back to your alignment.

Once you switch back to your alignment, the top should have a big yellow box that says “Out of Sync” and have a blue button that says “Realign”. Hit the realign button, which will call up one of your earlier screens, and you just have to hit realign once more.

Now all of the attached primers should show up in the top row of the alignment window. Since I have so many overlapping primers, this eats up a bunch of the space on the screen (you can turn off the primers if needed by clicking on the arrow next to “Template” and clicking off the box next to Primers). Still, now you can move around the map and find primers that will be able to sequence different parts o the plasmid you have not sequenced yet. In this case, I’ll likely just move forwards with one clone (such as Clone A), and I’ll start sequencing other parts of the ORF, such as the remaining parts of mCherry which I can likely get with the primer KAM1042.

Congrats, you’re now a Sanger sequencing analysis master.

Flowjo Analysis of GFP positive cells

We do a lot of flow cytometry in the lab. Inevitably, what ends up being the most practical tool for analysis of low cytometry data is FlowJo. While I’ve been using FlowJo for a long time, I realize it isn’t super intuitive and new people to the lab may first struggle in using it. Thus, here’s a short set of instructions for using it to do a basic process, such as determining what percentage of live cells are also GFP positive.

Obviously, if you don’t have FlowJo yet, then download it from the website. Next, log into FlowJo Portal. I’m obviously not going to share my login and password here; ask someone in the lab or consult the lab google docs.

Once logged in, you’ll be starting with a blank analysis workspace, as below.

Before I forget, an annoying default setting of FlowJo is that it only lists two decimal points in most of its values. This can be prohibitively uninformative if you have very low percentages that you’re trying to accurate quantitate. Thus, click on the “Preferences” button:

Then click on the “Workspaces button”

And finally once in that final window, change the “Decimal Precision” value to something like 8.

With that out of the way, now you can perform your analysis. Before you start dragging in samples, I find it useful to make a group for the specific set of samples you may want to analyze. Thus, I hit the “Create Group” button and type in the name of the group I’ll be analyzing.

Now that the group is made, I select it, and then drag the new sample files into it, like below:

Now to actually start analyzing the flow data. Start by choosing a representative sample (eg. the first sample), and double clicking on it. By default, a scatterplot should show up. Set it so forward scatter (FSC-A) is on the X-axis, and side scatter (SSC-A) is on the Y-axis. Since we’re mostly using HEK cells, that means that main thing we will be doing in this screen is gating for the population of cells while excluding debris (small FSC-A but high SSC-A). Thus, make a gate like this:

Once you have made that gate, you’ll want to keep it constant between samples. Thus, right click on the “Live” population in the workspace and hit “Copy to Group”. Once you do that, the population should now be in bold, with the same text color as the group name.

Next is doublet gating. So the live cell population will already be enriched for singlets, but having a second “doublet gating” step will make it that much more pure. Here is the best description of doublet gating I’ve seen to date. To do this, make a scatterplot where FSC-A is on the X-axis, and FSC-H is on the Y-axis. Then only gate the cells directly on the diagonal, thus excluding those that have more FSC-A relative to FSC-H. Name these “Singlets”.

And like before, copy this to the group.

Next is actually setting up the analysis for the response variable we were looking to measure. In this case, it’s GFP positivity, captured by the BL1-A detector. While this can be done in histogram format, I generally also do this with a scatterplot, since it allows me to see even small numbers of events (which would be smashed against the bottom of the plot if it were a smoothed histogram). Of course, a scatterplot needs a second axis, so I just used mCherry fluorescence (or the lack of it, since these were just normal 293T cells), captured by the YL2-A detector.

And of course copy that to the group as well (you should know how to do this by now). Lastly, the easiest way to output this data is to hit the Table Editor button near the top of the screen to open up a new window. Once in this window, select the populations / statistics you want to include from the main workspace, and drag it into the table editor, so you have something that looks like this.

Some of those statistics aren’t what we’re looking for. For example, I find it much more informative to have the singlets show total count, rather than Freq of parent. To do this, double click on that row, and select the statistic you want to include.

And you should now have something that looks like this:

With the settings fixed, you can hit the “Create Table” button at the top of the main workspace. This will make a new window, holding the table you wanted. To actually use this data elsewhere (such as with R), export it into a csv format which can be easily imported by other programs.

FYI, if you followed everything exactly up to here, you should only have 2 data columns and not 3. I had simplified some things, but forgot to update this last image so it’s now no longer 100% right (though the general idea is still correct).

Congratulations. You are now a FlowJo master.
